HL780-3A

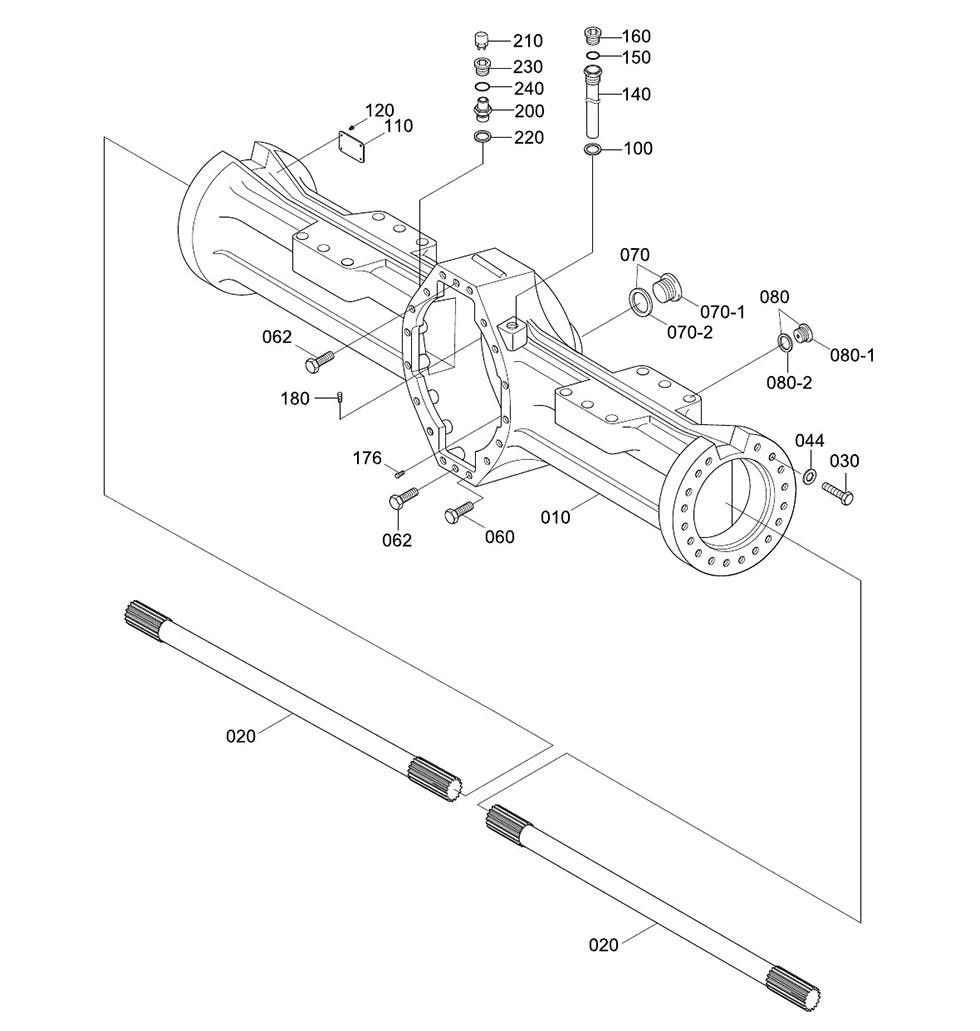

    • ?Item: *
    • Part No: ZGAQ-00072
    • Description: AXLE CASING
    • Qty: 1
    • ?Item: 10
    • Part No: ZGAQ-00073
    • Description: CASING-AXLE
    • Qty: 1
    • Serial No: - #0104
    • ?Item: 10
    • Part No: ZGAQ-01616
    • Description: CASING-AXLE
    • Qty: 1
    • Serial No: #0105 - #0178
    • ?Item: 10
    • Part No: ZGAQ-01727
    • Description: CASING-AXLE
    • Qty: 1
    • Serial No: #0179 -
    • ?Item: 20
    • Part No: ZGAQ-00074
    • Description: SHAFT-STUD
    • Qty: 2
    • ?Item: *
    • Part No: ZGAQ-00075
    • Description: AXLE CASING
    • Qty: 1
    • Serial No: - #0104
    • ?Item: *
    • Part No: ZGAQ-01646
    • Description: AXLE CASING
    • Qty: 1
    • Serial No: #0105 -
    • ?Item: 30
    • Part No: ZGAQ-00076
    • Description: SCREW-HEX
    • Qty: 36
    • ?Item: 44
    • Part No: ZGAQ-00077
    • Description: WASHER
    • Qty: 36
    • ?Item: 60
    • Part No: ZGAQ-00078
    • Description: SCREW-LOCKING
    • Qty: 14
    • Serial No: - #0178
    • ?Item: 60
    • Part No: ZGAQ-01728
    • Description: SCREW-LOCKING
    • Qty: 18
    • Serial No: #0179 -
    • ?Item: 62
    • Part No: ZGAQ-00079
    • Description: SCREW-LOCKING
    • Qty: 2
    • Serial No: - #0104
    • ?Item: 62
    • Part No: ZGAQ-00079
    • Description: SCREW-LOCKING
    • Qty: 4
    • Serial No: #0105 - #0178
    • ?Item: 70-1
    • Part No: ZGAQ-00081
    • Description: .PLUG-SCREW
    • Qty: 1
    • ?Item: 70-2
    • Part No: ZGAQ-00082
    • Description: .O-RING
    • Qty: 1
    • ?Item: 80-1
    • Part No: ZGAQ-01212
    • Description: .O-RING
    • Qty: 1
    • ?Item: 80-2
    • Part No: ZGAQ-00084
    • Description: .PLUG-SCREW
    • Qty: 1
    • ?Item: 29252
    • Part No: ZGAQ-00085
    • Description: .O-RING
    • Qty: 1
    • ?Item: 100
    • Part No: ZGAQ-00085
    • Description: O-RING
    • Qty: 1
    • Serial No: - #0104
    • ?Item: 110
    • Part No: ZGAQ-00086
    • Description: PLATE-TYPE
    • Qty: 1
    • ?Item: 120
    • Part No: ZGAQ-00087
    • Description: STUD-GROOVED
    • Qty: 4
    • ?Item: 140
    • Part No: ZGAQ-01102
    • Description: TUBE-SUCTION
    • Qty: 1
    • Serial No: #0001 -
    • ?Item: 140-1
    • Part No: ZGAQ-00085
    • Description: .O-RING
    • Qty: 1
    • Serial No: #0001 - #0104
    • ?Item: 150
    • Part No: ZGAQ-00085
    • Description: O-RING
    • Qty: 1
    • Serial No: - #0104
    • ?Item: 150
    • Part No: ZGAQ-00680
    • Description: O-RING
    • Qty: 1
    • Serial No: #0105 -
    • ?Item: 160
    • Part No: ZGAQ-00089
    • Description: PLUG-SCREW
    • Qty: 1
    • Serial No: - #0104
    • ?Item: 160
    • Part No: ZGAQ-00950
    • Description: PLUG-SCREW
    • Qty: 1
    • Serial No: #0105 -
    • ?Item: 176
    • Part No: ZGAQ-00090
    • Description: SCREW-CAP
    • Qty: 2
    • ?Item: 180
    • Part No: ZGAQ-00091
    • Description: SCREW-OVAL HEAD
    • Qty: 3
    • ?Item: 200
    • Part No: ZGAQ-00092
    • Description: PLUG-SCREW
    • Qty: 1
    • ?Item: 210
    • Part No: ZGAQ-00093
    • Description: VALVE-VENT
    • Qty: 1
    • ?Item: 220
    • Part No: ZGAQ-00085
    • Description: O-RING
    • Qty: 1
    • Serial No: #0001 -
    • ?Item: 230
    • Part No: ZGAQ-01614
    • Description: PLUG-SCREW
    • Qty: 1
    • Serial No: #0105 -
    • ?Item: 240
    • Part No: ZGAQ-01615
    • Description: RING-SEALING
    • Qty: 1
    • Serial No: #0105 -

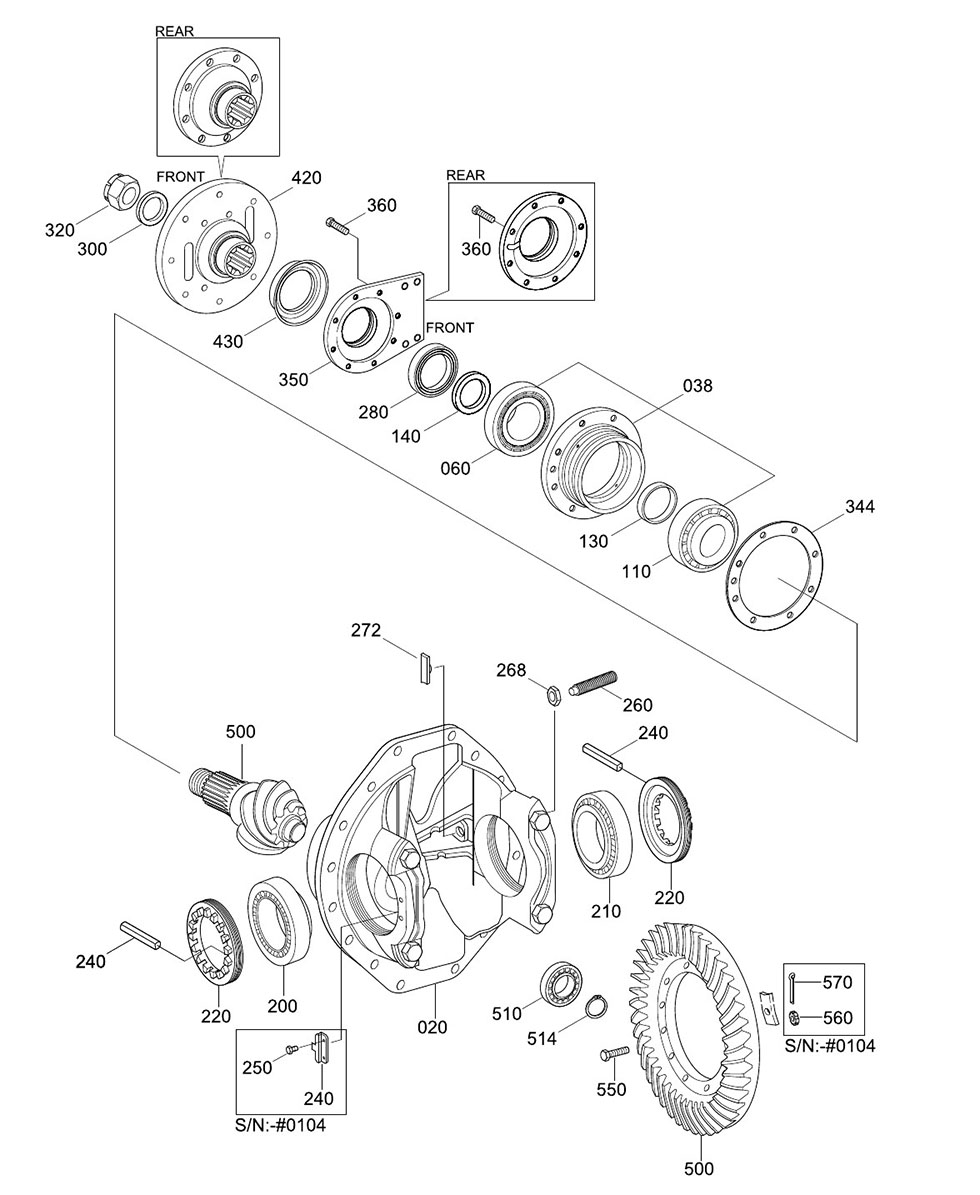

    • ?Item: *
    • Part No: ZGAQ-01669
    • Description: DIFF CARRIER ASSY
    • Qty: 1
    • Serial No: - #0104
    • Remark: FRONT
    • ?Item: *
    • Part No: ZGAQ-01645
    • Description: DIFF CARRIER ASSY
    • Qty: 1
    • Serial No: #0105 -
    • Remark: FRONT
    • ?Item: *
    • Part No: ZGAQ-00005
    • Description: DIFF CARRIER ASSY
    • Qty: 1
    • Serial No: - #0103
    • Remark: REAR
    • ?Item: *
    • Part No: ZGAQ-01649
    • Description: DIFF CARRIER ASSY
    • Qty: 1
    • Serial No: #0104 -
    • Remark: REAR
    • ?Item: 20
    • Part No: ZGAQ-00004
    • Description: HOUSING-AXLE DRIVE
    • Qty: 1
    • Serial No: - #0104
    • Remark: FRONT
    • ?Item: 20
    • Part No: ZGAQ-01601
    • Description: HOUSING-AXLE DRIVE
    • Qty: 1
    • Serial No: #0105 -
    • Remark: FRONT
    • ?Item: 20
    • Part No: ZGAQ-00006
    • Description: HOUSING-AXLE DRIVE
    • Qty: 1
    • Serial No: - #0103
    • Remark: REAR
    • ?Item: 20
    • Part No: ZGAQ-01641
    • Description: HOUSING-AXLE DRIVE
    • Qty: 1
    • Serial No: #0104 - #0178
    • Remark: REAR
    • ?Item: 20
    • Part No: ZGAQ-01729
    • Description: HOUSING-AXLE DRIVE
    • Qty: 1
    • Serial No: #0179 -
    • Remark: REAR
    • ?Item: 38
    • Part No: ZGAQ-01098
    • Description: BUSHING-BEARING
    • Qty: 1
    • Serial No: #0001 -
    • ?Item: 60
    • Part No: ZGAQ-00008
    • Description: RING-BEARING,INNER
    • Qty: 1
    • ?Item: 110
    • Part No: ZGAQ-01099
    • Description: RING-BEARING,INNER
    • Qty: 1
    • Serial No: #0001 -
    • ?Item: 130
    • Part No: ZGAQ-00010
    • Description: RING-SPACER(14.4)
    • Qty: 1
    • ?Item: 130
    • Part No: ZGAQ-00011
    • Description: RING-SPACER(14.3)
    • Qty: 1
    • ?Item: 130
    • Part No: ZGAQ-00012
    • Description: RING-SPACER(14.2)
    • Qty: 1
    • ?Item: 130
    • Part No: ZGAQ-00013
    • Description: RING-SPACER(14.1)
    • Qty: 1
    • ?Item: 130
    • Part No: ZGAQ-00014
    • Description: RING-SPACER(14.0)
    • Qty: 1
    • ?Item: 130
    • Part No: ZGAQ-00015
    • Description: RING-SPACER(13.8)
    • Qty: 1
    • ?Item: 130
    • Part No: ZGAQ-00016
    • Description: RING-SPACER(13.7)
    • Qty: 1
    • ?Item: 130
    • Part No: ZGAQ-00017
    • Description: RING-SPACER(13.6)
    • Qty: 1
    • ?Item: 130
    • Part No: ZGAQ-00018
    • Description: RING-SPACER(13.5)
    • Qty: 1
    • ?Item: 130
    • Part No: ZGAQ-00019
    • Description: RING-SPACER(13.4)
    • Qty: 1
    • ?Item: 130
    • Part No: ZGAQ-00020
    • Description: RING-SPACER(13.3)
    • Qty: 1
    • ?Item: 130
    • Part No: ZGAQ-00021
    • Description: RING-SPACER(13.2)
    • Qty: 1
    • ?Item: 130
    • Part No: ZGAQ-00022
    • Description: RING-SPACER(13.1)
    • Qty: 1
    • ?Item: 140
    • Part No: ZGAQ-01100
    • Description: WASHER
    • Qty: 1
    • Serial No: #0001 -
    • ?Item: 200
    • Part No: ZGAQ-00024
    • Description: BEARING-ROLLER
    • Qty: 1
    • Serial No: - #0104
    • ?Item: 200
    • Part No: ZGAQ-01594
    • Description: BEARING-ROLLER
    • Qty: 1
    • Serial No: #0105 -
    • ?Item: 210
    • Part No: ZGAQ-00024
    • Description: BEARING-ROLLER
    • Qty: 1
    • Serial No: - #0104
    • ?Item: 210
    • Part No: ZGAQ-01595
    • Description: BEARING-ROLLER
    • Qty: 1
    • Serial No: #0105 -
    • ?Item: 220
    • Part No: ZGAQ-00025
    • Description: NUT-ADJUSTING
    • Qty: 2
    • Serial No: - #0104
    • ?Item: 220
    • Part No: ZGAQ-01596
    • Description: NUT-ADJUSTING
    • Qty: 2
    • Serial No: #0105 -
    • ?Item: 240
    • Part No: ZGAQ-00026
    • Description: WASHER-TAB
    • Qty: 2
    • Serial No: - #0104
    • ?Item: 240
    • Part No: ZGAQ-01597
    • Description: PIN-SLOT
    • Qty: 2
    • Serial No: #0105 -
    • ?Item: 250
    • Part No: ZGAQ-00027
    • Description: SCREW-HEX
    • Qty: 4
    • Serial No: - #0104
    • ?Item: 260
    • Part No: ZGAQ-00028
    • Description: SCREW-ADJUSTING
    • Qty: 1
    • ?Item: 268
    • Part No: ZGAQ-00029
    • Description: NUT-HEX
    • Qty: 1
    • ?Item: 272
    • Part No: ZGAQ-00030
    • Description: PAD-SLIDING
    • Qty: 1
    • ?Item: 280
    • Part No: ZGAQ-00031
    • Description: SEAL-SHAFT
    • Qty: 1
    • Serial No: - #0104
    • ?Item: 280
    • Part No: ZGAQ-01598
    • Description: SEAL-SHAFT
    • Qty: 1
    • Serial No: #0105 -
    • ?Item: 300
    • Part No: ZGAQ-00032
    • Description: WASHER
    • Qty: 1
    • Serial No: - #0104
    • ?Item: 300
    • Part No: ZGAQ-01599
    • Description: WASHER
    • Qty: 1
    • Serial No: #0105 -
    • ?Item: 320
    • Part No: ZGAQ-00033
    • Description: NUT-SLOTTED
    • Qty: 1
    • Serial No: - #0104
    • ?Item: 320
    • Part No: ZGAQ-01600
    • Description: NUT-SLOTTED
    • Qty: 1
    • Serial No: #0105 -
    • ?Item: 344
    • Part No: ZGAQ-00034
    • Description: WASHER(1.0)
    • Qty: 1
    • ?Item: 344
    • Part No: ZGAQ-00035
    • Description: WASHER(0.5)
    • Qty: 1
    • ?Item: 344
    • Part No: ZGAQ-00036
    • Description: WASHER(0.3)
    • Qty: 1
    • ?Item: 344
    • Part No: ZGAQ-00037
    • Description: WASHER(0.1)
    • Qty: 1
    • ?Item: 344
    • Part No: ZGAQ-00038
    • Description: WASHER(0.15)
    • Qty: 1
    • ?Item: 344
    • Part No: ZGAQ-00039
    • Description: WASHER(0.2)
    • Qty: 1
    • ?Item: 344
    • Part No: ZGAQ-00040
    • Description: WASHER(0.6)
    • Qty: 1
    • ?Item: 344
    • Part No: ZGAQ-00041
    • Description: WASHER(0.7)
    • Qty: 1
    • ?Item: 344
    • Part No: ZGAQ-00042
    • Description: WASHER(0.8)
    • Qty: 1
    • ?Item: 344
    • Part No: ZGAQ-00043
    • Description: WASHER(0.9)
    • Qty: 1
    • ?Item: 350
    • Part No: ZGAQ-00044
    • Description: CAP-SEALING
    • Qty: 1
    • Serial No: - #0103
    • Remark: REAR
    • ?Item: 350
    • Part No: ZGAQ-01642
    • Description: CAP-SEALING
    • Qty: 1
    • Serial No: #0104 -
    • Remark: REAR
    • ?Item: 350
    • Part No: ZGAQ-00045
    • Description: CAP-SEALING
    • Qty: 1
    • Serial No: - #0104
    • Remark: FRONT
    • ?Item: 350
    • Part No: ZGAQ-01602
    • Description: CAP-SEALING
    • Qty: 1
    • Serial No: #0105 -
    • Remark: FRONT
    • ?Item: 360
    • Part No: ZGAQ-00046
    • Description: SCREW-HEX
    • Qty: 8
    • Serial No: - #0104
    • ?Item: 360
    • Part No: ZGAQ-01603
    • Description: SCREW-HEX
    • Qty: 8
    • Serial No: #0105 -
    • ?Item: 420
    • Part No: ZGAQ-00047
    • Description: FLANGE-INPUT
    • Qty: 1
    • Serial No: - #0103
    • Remark: REAR
    • ?Item: 420
    • Part No: ZGAQ-01643
    • Description: FLANGE-INPUT
    • Qty: 1
    • Serial No: #0104 -
    • Remark: REAR
    • ?Item: 420
    • Part No: ZGAQ-00048
    • Description: FLANGE-INPUT
    • Qty: 1
    • Serial No: - #0104
    • Remark: FRONT
    • ?Item: 420
    • Part No: ZGAQ-01605
    • Description: FLANGE-INPUT
    • Qty: 1
    • Serial No: #0105 -
    • Remark: FRONT
    • ?Item: 430
    • Part No: ZGAQ-00049
    • Description: CAP-DUST
    • Qty: 1
    • ?Item: 430
    • Part No: ZGAQ-01606
    • Description: PROTECTION-DUST
    • Qty: 1
    • ?Item: 500
    • Part No: ZGAQ-00051
    • Description: BEVEL GEAR SET
    • Qty: 1
    • Serial No: #0001 - #0104
    • Remark: FRONT
    • ?Item: 500
    • Part No: ZGAQ-01613
    • Description: BEVEL GEAR SET
    • Qty: 1
    • Serial No: #0105 -
    • Remark: FRONT
    • ?Item: 500
    • Part No: ZGAQ-01101
    • Description: BEVEL GEAR SET
    • Qty: 1
    • Serial No: #0001 - #0103
    • Remark: REAR
    • ?Item: 500
    • Part No: ZGAQ-01644
    • Description: BEVEL GEAR SET
    • Qty: 1
    • Serial No: #0104 -
    • Remark: REAR
    • ?Item: 510
    • Part No: ZGAQ-00053
    • Description: BEARING-ROLLER
    • Qty: 1
    • ?Item: 514
    • Part No: ZGAQ-00054
    • Description: RING-RETAINING
    • Qty: 1
    • ?Item: 550
    • Part No: ZGAQ-00055
    • Description: BOLT-FLAT HEAD
    • Qty: 12
    • Serial No: - #0104
    • ?Item: 550
    • Part No: ZGAQ-01604
    • Description: SCREW-LOCKING
    • Qty: 24
    • Serial No: #0105 -
    • ?Item: 560
    • Part No: ZGAQ-00056
    • Description: NUT-CASTLE
    • Qty: 12
    • Serial No: - #0104
    • ?Item: 570
    • Part No: ZGAQ-00057
    • Description: PIN-SPLIT
    • Qty: 12
    • Serial No: - #0104

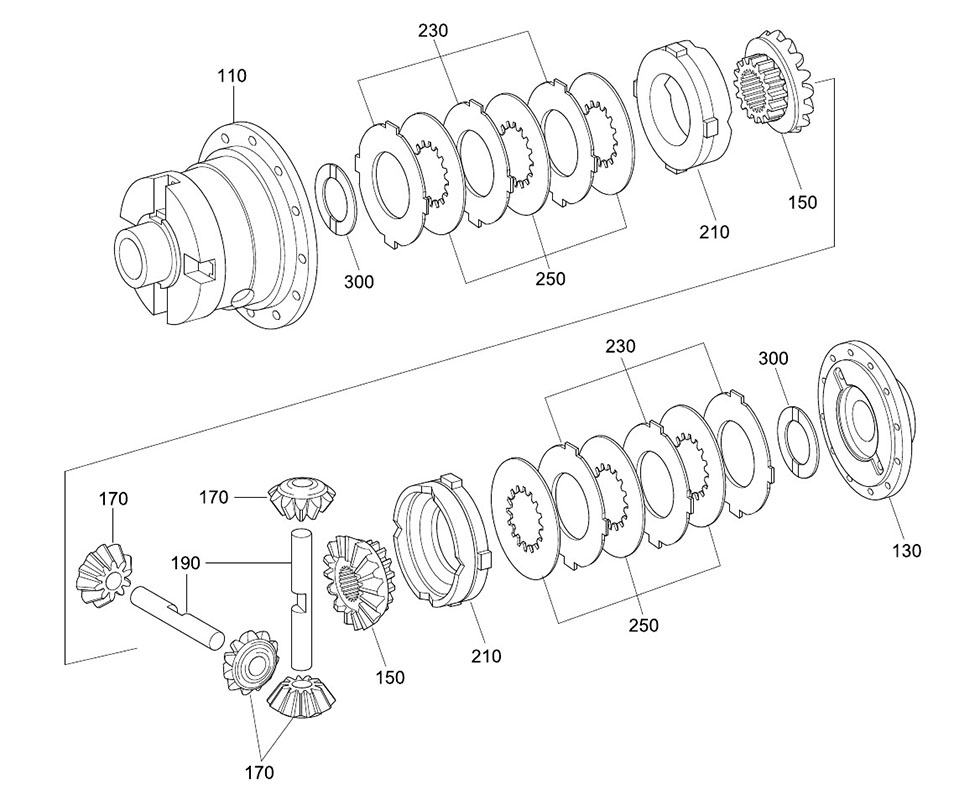

    • ?Item: 600
    • Part No: @
    • Description: LIMITED SLIP DIFF
    • Qty: 1
    • Remark: NOT
    • ?Item: *
    • Part No: ZGAQ-00058
    • Description: LIMITED SLIP DIFF
    • Qty: 1
    • Serial No: - #0104
    • Remark: SEE 6080
    • ?Item: *
    • Part No: ZGAQ-01607
    • Description: LIMITED SLIP DIFF
    • Qty: 1
    • Serial No: #0105 -
    • Remark: SEE 6080
    • ?Item: 110
    • Part No: ZGAQ-00059
    • Description: HOUSING-DIFFERENTIAL
    • Qty: 1
    • Serial No: - #0104
    • ?Item: 110
    • Part No: ZGAQ-01608
    • Description: HOUSING-DIFFERENTIAL
    • Qty: 1
    • Serial No: #0105 -
    • ?Item: 130
    • Part No: ZGAQ-00060
    • Description: COVER-HOUSING
    • Qty: 1
    • Serial No: - #0104
    • ?Item: 130
    • Part No: ZGAQ-01609
    • Description: COVER-HOUSING
    • Qty: 2
    • Serial No: #0105 -
    • ?Item: 150
    • Part No: ZGAQ-00061
    • Description: GEAR-AXLE BEVEL
    • Qty: 2
    • Serial No: - #0104
    • ?Item: 150
    • Part No: ZGAQ-01610
    • Description: BEVEL GEAR-AXLE
    • Qty: 2
    • Serial No: #0105 -
    • ?Item: 170
    • Part No: ZGAQ-00062
    • Description: GEAR-AXLE BEVEL
    • Qty: 4
    • ?Item: 190
    • Part No: ZGAQ-00063
    • Description: AXLE-DIFFERENTIAL
    • Qty: 2
    • ?Item: 210
    • Part No: ZGAQ-00064
    • Description: RING-PRESSURE
    • Qty: 2
    • Serial No: - #0104
    • ?Item: 210
    • Part No: ZGAQ-01611
    • Description: RING-PRESSURE
    • Qty: 2
    • Serial No: #0105 -
    • ?Item: 230
    • Part No: ZGAQ-00065
    • Description: DISC-O/CLUTCH(4.0)
    • Qty: 4
    • Serial No: - #0104
    • ?Item: 230
    • Part No: ZGAQ-00065
    • Description: DISC-O/CLUTCH(4.0)
    • Qty: 6
    • Serial No: #0105 -
    • ?Item: 230
    • Part No: ZGAQ-00066
    • Description: DISC-O/CLUTCH(3.9)
    • Qty: 4
    • Serial No: - #0104
    • ?Item: 230
    • Part No: ZGAQ-00066
    • Description: DISC-O/CLUTCH(3.9)
    • Qty: 6
    • Serial No: #0105 -
    • ?Item: 230
    • Part No: ZGAQ-00067
    • Description: DISC-O/CLUTCH(4.1)
    • Qty: 4
    • Serial No: - #0104
    • ?Item: 230
    • Part No: ZGAQ-00067
    • Description: DISC-O/CLUTCH(4.1)
    • Qty: 6
    • Serial No: #0105 -
    • ?Item: 250
    • Part No: ZGAQ-00068
    • Description: DISC-I/CLUTCH
    • Qty: 4
    • Serial No: - #0104
    • ?Item: 250
    • Part No: ZGAQ-00068
    • Description: DISC-I/CLUTCH
    • Qty: 6
    • Serial No: #0105 -
    • ?Item: 300
    • Part No: ZGAQ-00069
    • Description: WASHER-THRUST
    • Qty: 2
    • Serial No: - #0104
    • Remark: FRONT
    • ?Item: 300
    • Part No: ZGAQ-01612
    • Description: WASHER-THRUST
    • Qty: 2
    • Serial No: #0105 -
    • Remark: FRONT
    • ?Item: 300
    • Part No: ZGAQ-00070
    • Description: WASHER-THRUST
    • Qty: 2
    • Serial No: - #0103
    • Remark: REAR
    • ?Item: 300
    • Part No: ZGAQ-01612
    • Description: WASHER-THRUST
    • Qty: 2
    • Serial No: #0104 -
    • Remark: REAR
    • ?Item: 370
    • Part No: ZGAQ-00071
    • Description: SCREW-EXPANSION
    • Qty: 12
    • Serial No: - #0104

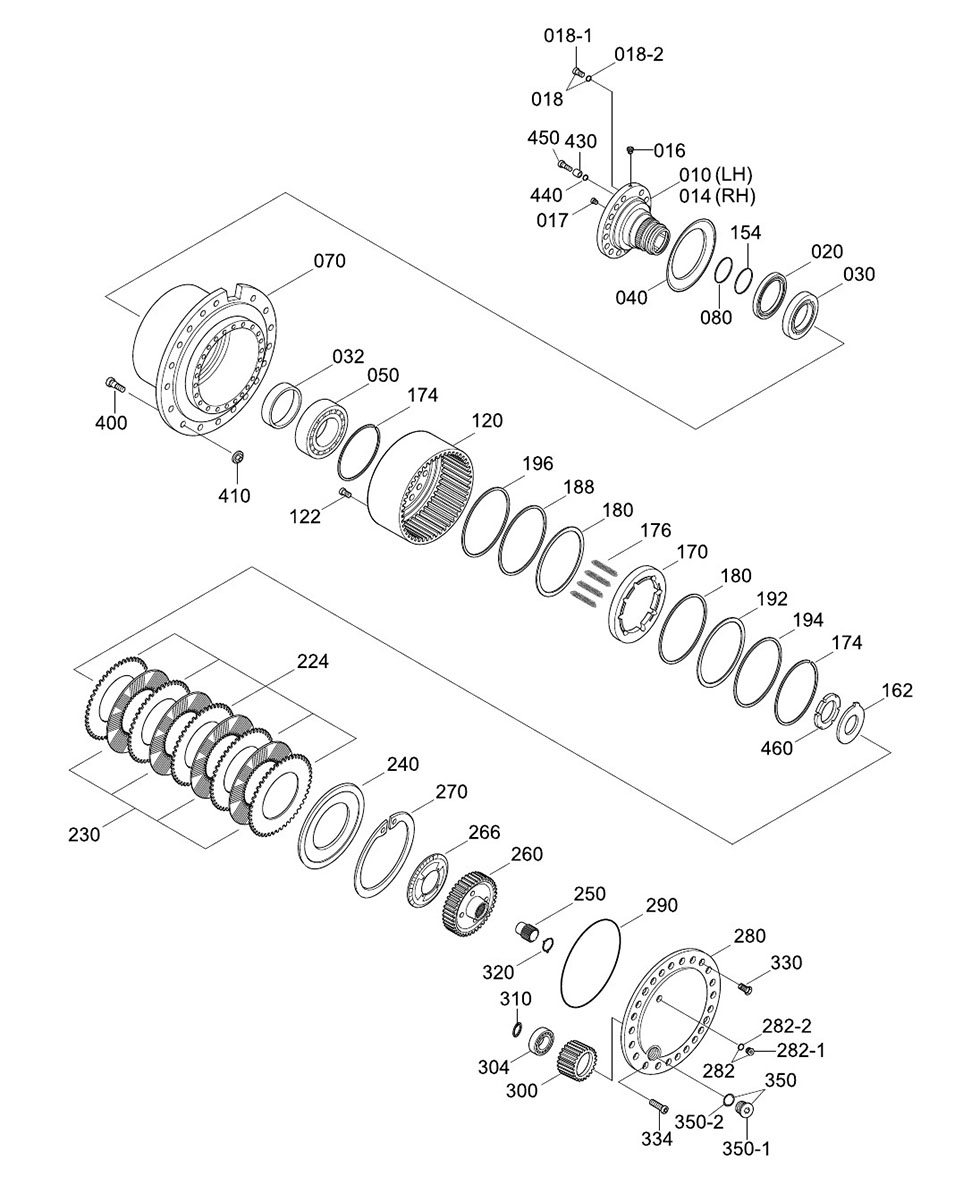

    • ?Item: 10
    • Part No: ZGAQ-01103
    • Description: HUB CARRIER ASSY
    • Qty: 1
    • Serial No: #0001 -
    • ?Item: 14
    • Part No: ZGAQ-01104
    • Description: HUB CARRIER ASSY
    • Qty: 1
    • Serial No: #0001 -
    • ?Item: 16
    • Part No: ZGAQ-00096
    • Description: PLUG
    • Qty: 10
    • Serial No: #0001 -
    • ?Item: 18-1
    • Part No: ZGAQ-00098
    • Description: PLUG-SCREW
    • Qty: 2
    • ?Item: 18-2
    • Part No: ZGAQ-00099
    • Description: O-RING
    • Qty: 2
    • ?Item: 20
    • Part No: ZGAQ-00100
    • Description: RING-CASSETTE
    • Qty: 2
    • ?Item: 30
    • Part No: ZGAQ-00101
    • Description: BEARING-ROLLER
    • Qty: 2
    • ?Item: 32
    • Part No: ZGAQ-00102
    • Description: WASHER(20.0)
    • Qty: 2
    • Serial No: #0001 -
    • ?Item: 32
    • Part No: ZGAQ-00103
    • Description: WASHER(19.9)
    • Qty: 2
    • ?Item: 32
    • Part No: ZGAQ-00104
    • Description: WASHER(19.8)
    • Qty: 2
    • ?Item: 32
    • Part No: ZGAQ-00105
    • Description: WASHER(19.7)
    • Qty: 2
    • ?Item: 32
    • Part No: ZGAQ-00106
    • Description: WASHER(19.6)
    • Qty: 2
    • ?Item: 32
    • Part No: ZGAQ-00107
    • Description: WASHER(19.5)
    • Qty: 2
    • ?Item: 32
    • Part No: ZGAQ-00108
    • Description: WASHER(19.4)
    • Qty: 2
    • ?Item: 32
    • Part No: ZGAQ-00109
    • Description: WASHER(19.3)
    • Qty: 2
    • ?Item: 32
    • Part No: ZGAQ-00110
    • Description: WASHER(19.2)
    • Qty: 2
    • ?Item: 32
    • Part No: ZGAQ-00111
    • Description: WASHER(20.1)
    • Qty: 2
    • ?Item: 32
    • Part No: ZGAQ-00112
    • Description: WASHER(20.2)
    • Qty: 2
    • ?Item: 32
    • Part No: ZGAQ-00113
    • Description: WASHER(20.3)
    • Qty: 2
    • ?Item: 32
    • Part No: ZGAQ-00114
    • Description: WASHER(20.4)
    • Qty: 2
    • ?Item: 32
    • Part No: ZGAQ-00115
    • Description: WASHER(20.5)
    • Qty: 2
    • ?Item: 32
    • Part No: ZGAQ-00116
    • Description: WASHER(20.6)
    • Qty: 2
    • ?Item: 32
    • Part No: ZGAQ-00117
    • Description: WASHER(20.7)
    • Qty: 2
    • ?Item: 32
    • Part No: ZGAQ-00118
    • Description: WASHER(20.8)
    • Qty: 2
    • ?Item: 32
    • Part No: ZGAQ-00119
    • Description: WASHER(20.9)
    • Qty: 2
    • ?Item: 32
    • Part No: ZGAQ-00120
    • Description: WASHER(21.0)
    • Qty: 2
    • ?Item: 40
    • Part No: ZGAQ-00121
    • Description: SHEET-SCREEN
    • Qty: 2
    • ?Item: 50
    • Part No: ZGAQ-00122
    • Description: BEARING-ROLLER
    • Qty: 2
    • ?Item: 70
    • Part No: ZGAQ-00123
    • Description: HUB
    • Qty: 2
    • ?Item: 80
    • Part No: ZGAQ-00124
    • Description: O-RING
    • Qty: 2
    • ?Item: 120
    • Part No: ZGAQ-00125
    • Description: GEAR-RING
    • Qty: 2
    • ?Item: 122
    • Part No: ZGAQ-00096
    • Description: PLUG
    • Qty: 4
    • ?Item: 154
    • Part No: ZGAQ-00126
    • Description: O-RING
    • Qty: 2
    • ?Item: 162
    • Part No: ZGAQ-00127
    • Description: PLATE-THRUST
    • Qty: 2
    • ?Item: 170
    • Part No: ZGAQ-00128
    • Description: PISTON
    • Qty: 2
    • ?Item: 174
    • Part No: ZGAQ-00129
    • Description: RING-SNAP
    • Qty: 4
    • ?Item: 176
    • Part No: ZGAQ-00130
    • Description: SPRING-TENSION
    • Qty: 16
    • ?Item: 180
    • Part No: ZGAQ-00131
    • Description: U-RING
    • Qty: 4
    • ?Item: 188
    • Part No: ZGAQ-00132
    • Description: RING-BACK UP
    • Qty: 2
    • ?Item: 192
    • Part No: ZGAQ-00133
    • Description: RING-BACK UP
    • Qty: 2
    • ?Item: 194
    • Part No: ZGAQ-00134
    • Description: RING-GUIDE
    • Qty: 2
    • ?Item: 196
    • Part No: ZGAQ-00135
    • Description: RING-GUIDE
    • Qty: 2
    • ?Item: 224
    • Part No: ZGAQ-00136
    • Description: DISC-O/CLUTCH(4.5)
    • Qty: 10
    • ?Item: 224
    • Part No: ZGAQ-00137
    • Description: DISC-O/CLUTCH(5.0)
    • Qty: 10
    • ?Item: 224
    • Part No: ZGAQ-00138
    • Description: DISC-O/CLUTCH(5.5)
    • Qty: 10
    • ?Item: 230
    • Part No: ZGAQ-00139
    • Description: DISC-I/CLUTCH
    • Qty: 8
    • ?Item: 240
    • Part No: ZGAQ-00140
    • Description: SHIM-END
    • Qty: 2
    • ?Item: 250
    • Part No: 4474-309-198
    • Description: SHAFT-SUN GEAR
    • Qty: 2
    • Serial No: #0001 -
    • ?Item: 260
    • Part No: ZGAQ-00142
    • Description: CARRIER-DISC
    • Qty: 2
    • ?Item: 266
    • Part No: ZGAQ-00143
    • Description: RING
    • Qty: 2
    • ?Item: 270
    • Part No: ZGAQ-00144
    • Description: RING-RETAINING
    • Qty: 2
    • ?Item: 280
    • Part No: ZGAQ-00145
    • Description: CARRIER-PLANET
    • Qty: 2
    • ?Item: 282-1
    • Part No: ZGAQ-00098
    • Description: .PLUG-SCREW
    • Qty: 2
    • ?Item: 282-2
    • Part No: ZGAQ-00099
    • Description: .O-RING
    • Qty: 2
    • ?Item: 290
    • Part No: ZGAQ-00147
    • Description: O-RING
    • Qty: 2
    • ?Item: 300
    • Part No: ZGAQ-01106
    • Description: GEAR-PLANET
    • Qty: 8
    • Serial No: #0001 -
    • ?Item: 304
    • Part No: ZGAQ-01107
    • Description: ROLLER BEARING
    • Qty: 8
    • Serial No: #0001 -
    • ?Item: 310
    • Part No: ZGAQ-00149
    • Description: RING-RETAINING
    • Qty: 8
    • ?Item: 320
    • Part No: ZGAQ-00150
    • Description: WASHER-THRUST(6.5)
    • Qty: 2
    • ?Item: 320
    • Part No: ZGAQ-00151
    • Description: WASHER-THRUST(6.2)
    • Qty: 2
    • ?Item: 320
    • Part No: ZGAQ-00152
    • Description: WASHER-THRUST(5.9)
    • Qty: 2
    • ?Item: 320
    • Part No: ZGAQ-00153
    • Description: WASHER-THRUST(5.0)
    • Qty: 2
    • ?Item: 320
    • Part No: ZGAQ-00154
    • Description: WASHER-THRUST(5.3)
    • Qty: 2
    • ?Item: 320
    • Part No: ZGAQ-00155
    • Description: WASHER-THRUST(5.6)
    • Qty: 2
    • ?Item: 330
    • Part No: ZGAQ-00156
    • Description: SCREW-HEX
    • Qty: 62
    • ?Item: 334
    • Part No: ZGAQ-00157
    • Description: SCREW-CAP
    • Qty: 2
    • ?Item: 350-1
    • Part No: ZGAQ-00159
    • Description: .PLUG-SCREW
    • Qty: 2
    • ?Item: 350-2
    • Part No: ZGAQ-00082
    • Description: .O-RING
    • Qty: 2
    • Serial No: - #0104
    • ?Item: 350-2
    • Part No: ZGAQ-01212
    • Description: .O-RING
    • Qty: 2
    • Serial No: #0105 -
    • ?Item: 400
    • Part No: ZGAQ-00160
    • Description: BOLT-WHEEL
    • Qty: 38
    • ?Item: 410
    • Part No: ZGAQ-00161
    • Description: NUT-WHEEL
    • Qty: 38
    • ?Item: 430
    • Part No: ZGAQ-00162
    • Description: NECK-SCREW
    • Qty: 2
    • ?Item: 440
    • Part No: ZGAQ-00163
    • Description: RING-SEALING
    • Qty: 2
    • ?Item: 450
    • Part No: ZGAQ-00164
    • Description: VALVE-VENT
    • Qty: 2
    • ?Item: 460
    • Part No: ZGAQ-00165
    • Description: NUT-SLOTTED
    • Qty: 2

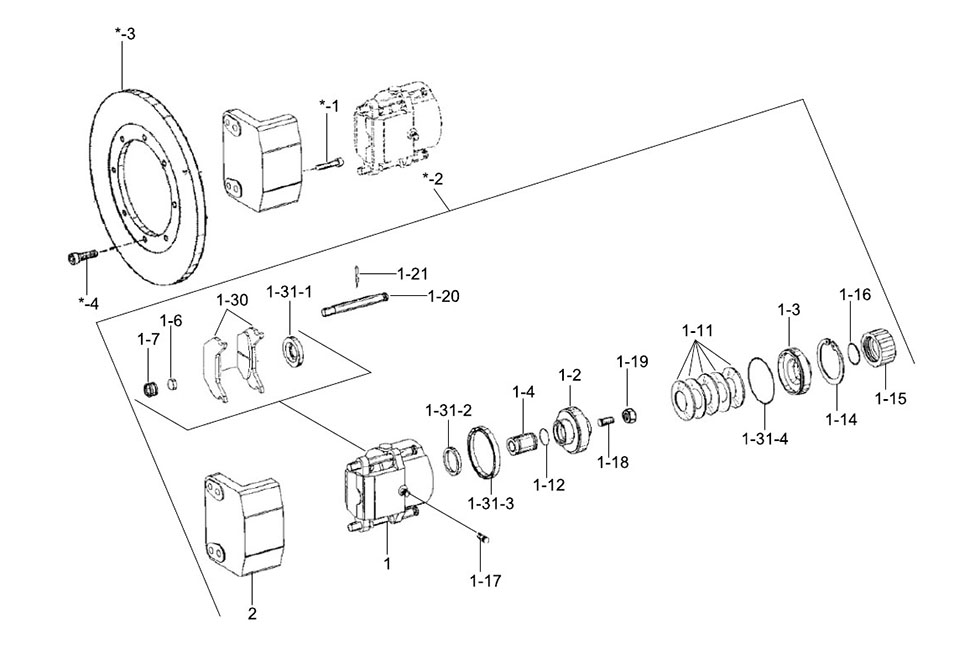

    • ?Item: *
    • Part No: ZGAQ-01926
    • Description: .PARKING BRAKE
    • Qty: 1
    • Serial No: #0105 -
    • ?Item: *-1
    • Part No: ZGAQ-01617
    • Description: ..SCREW-CAP
    • Qty: 4
    • ?Item: *-2
    • Part No: ZGAQ-01618
    • Description: ..BRAKE
    • Qty: 1
    • ?Item: 1
    • Part No: ZGAQ-01619
    • Description: ...BRAKE
    • Qty: 1
    • ?Item: 1-2
    • Part No: ZGAQ-01620
    • Description: ...PISTON
    • Qty: 1
    • ?Item: 1-3
    • Part No: ZGAQ-01621
    • Description: ...RING-PRESSURE
    • Qty: 1
    • ?Item: 1-4
    • Part No: ZGAQ-01622
    • Description: ...PIN-PRESSURE
    • Qty: 1
    • ?Item: 1-6
    • Part No: ZGAQ-01623
    • Description: ...MAGNET
    • Qty: 2
    • ?Item: 1-7
    • Part No: ZGAQ-01624
    • Description: ...RING-CLEARANCE
    • Qty: 2
    • ?Item: 1-11
    • Part No: ZGAQ-01625
    • Description: ...SPRING-CUP
    • Qty: 5
    • ?Item: 1-12
    • Part No: ZGAQ-01626
    • Description: ...O-RING
    • Qty: 1
    • ?Item: 1-14
    • Part No: ZGAQ-00168
    • Description: ...RING-RETAINING
    • Qty: 1
    • ?Item: 1-15
    • Part No: ZGAQ-01627
    • Description: ...CAP-SCREW
    • Qty: 1
    • ?Item: 1-16
    • Part No: ZGAQ-01628
    • Description: ...O-RING
    • Qty: 1
    • ?Item: 1-17
    • Part No: ZGAQ-01629
    • Description: ...BREATHER
    • Qty: 1
    • ?Item: 1-18
    • Part No: ZGAQ-01630
    • Description: ...SCREW-SET
    • Qty: 1
    • ?Item: 1-19
    • Part No: ZGAQ-01631
    • Description: ...NUT-HEXAGON
    • Qty: 1
    • ?Item: 1-20
    • Part No: ZGAQ-01632
    • Description: ...PIN
    • Qty: 1
    • ?Item: 1-21
    • Part No: ZGAQ-01633
    • Description: ...PIN-SPR. COTTER
    • Qty: 2
    • ?Item: 1-30
    • Part No: ZGAQ-01634
    • Description: ...BEARING LINING KIT
    • Qty: 1
    • ?Item: 1-31
    • Part No: ZGAQ-01635
    • Description: ...SEAL KIT
    • Qty: 1
    • ?Item: 1-31-1
    • Part No: ZGAQ-01636
    • Description: ....CAP-DUST
    • Qty: 1
    • ?Item: 1-31-2
    • Part No: ZGAQ-01637
    • Description: ....U-RING
    • Qty: 1
    • ?Item: 1-31-3
    • Part No: ZGAQ-01638
    • Description: ....U-RING
    • Qty: 1
    • ?Item: 1-31-4
    • Part No: ZGAQ-01639
    • Description: ....O-RING
    • Qty: 1
    • ?Item: 2
    • Part No: ZGAQ-01640
    • Description: ...PLATE-BRG ANCHOR
    • Qty: 1
    • ?Item: *-3
    • Part No: ZGAQ-00183
    • Description: ..DISC-BRAKE
    • Qty: 1
    • ?Item: *-4
    • Part No: ZGAQ-00184
    • Description: ..SCREW-CAP
    • Qty: 8

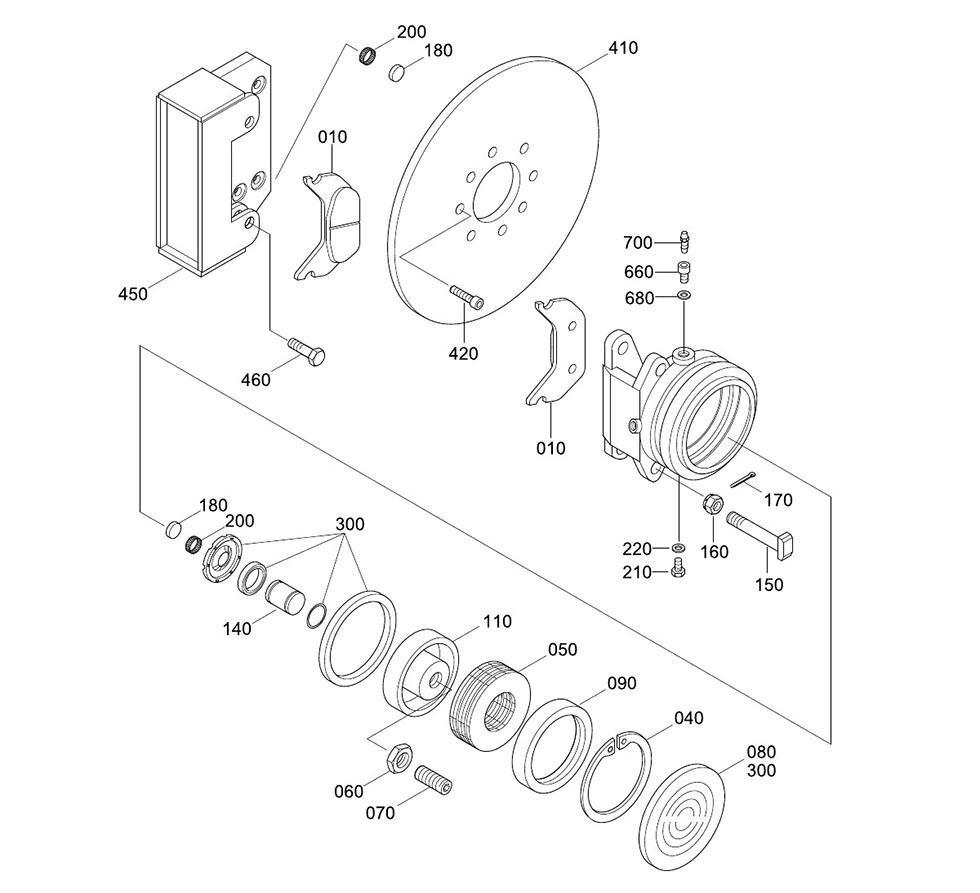

    • ?Item: *
    • Part No: ZGAQ-00166
    • Description: BRAKE ASSY
    • Qty: 1
    • Serial No: - #0104
    • ?Item: 10
    • Part No: ZGAQ-00167
    • Description: .CARRIER-LINNING
    • Qty: 2
    • Serial No: #0001 -
    • ?Item: 40
    • Part No: ZGAQ-00168
    • Description: .RING-RETAINING
    • Qty: 1
    • ?Item: 50
    • Part No: ZGAQ-00169
    • Description: .PACK-SPRING
    • Qty: 1
    • ?Item: 60
    • Part No: ZGAQ-00170
    • Description: .NUT-HEX
    • Qty: 1
    • ?Item: 70
    • Part No: ZGAQ-00171
    • Description: .SCREW-SET
    • Qty: 1
    • ?Item: 80
    • Part No: ZGAQ-00172
    • Description: .CAP-PROTECTION
    • Qty: 1
    • ?Item: 90
    • Part No: ZGAQ-00173
    • Description: .RING
    • Qty: 1
    • ?Item: 110
    • Part No: ZGAQ-00174
    • Description: .PISTON
    • Qty: 1
    • ?Item: 140
    • Part No: ZGAQ-00175
    • Description: .PIECE-PRESSURE
    • Qty: 1
    • ?Item: 150
    • Part No: ZGAQ-00176
    • Description: .SCREW-CAP
    • Qty: 2
    • ?Item: 160
    • Part No: ZGAQ-00177
    • Description: .NUT-CASTLE
    • Qty: 2
    • ?Item: 170
    • Part No: ZGAQ-00057
    • Description: .PIN-SPLIT
    • Qty: 2
    • ?Item: 180
    • Part No: ZGAQ-00178
    • Description: .MAGNET
    • Qty: 2
    • ?Item: 200
    • Part No: ZGAQ-00179
    • Description: .RING-CLEARANCE
    • Qty: 2
    • ?Item: 210
    • Part No: ZGAQ-00180
    • Description: .PLUG-SCREW
    • Qty: 1
    • ?Item: 220
    • Part No: ZGAQ-00181
    • Description: .RING-SEALING
    • Qty: 1
    • ?Item: 300
    • Part No: ZGAQ-00182
    • Description: .REPAIR SET
    • Qty: 1
    • ?Item: 410
    • Part No: ZGAQ-00183
    • Description: DISC-BRAKE
    • Qty: 1
    • ?Item: 420
    • Part No: ZGAQ-00184
    • Description: SCREW-CAP
    • Qty: 8
    • ?Item: 450
    • Part No: ZGAQ-00185
    • Description: CONSOLE
    • Qty: 1
    • ?Item: 460
    • Part No: ZGAQ-00186
    • Description: SCREW-CAP
    • Qty: 4
    • ?Item: 660
    • Part No: ZGAQ-00187
    • Description: NECK-SCREW
    • Qty: 1
    • ?Item: 680
    • Part No: ZGAQ-00188
    • Description: RING-SEALING
    • Qty: 1
    • ?Item: 700
    • Part No: ZGAQ-00164
    • Description: VALVE-VENT
    • Qty: 1
